Suspension Permanent Magnetic Separator PUF-H

PUF-H-BIG

PUF-H30E5

  • Usage・Features・Specifications
  • magnetic flux density
  • Catalog

<Usage>

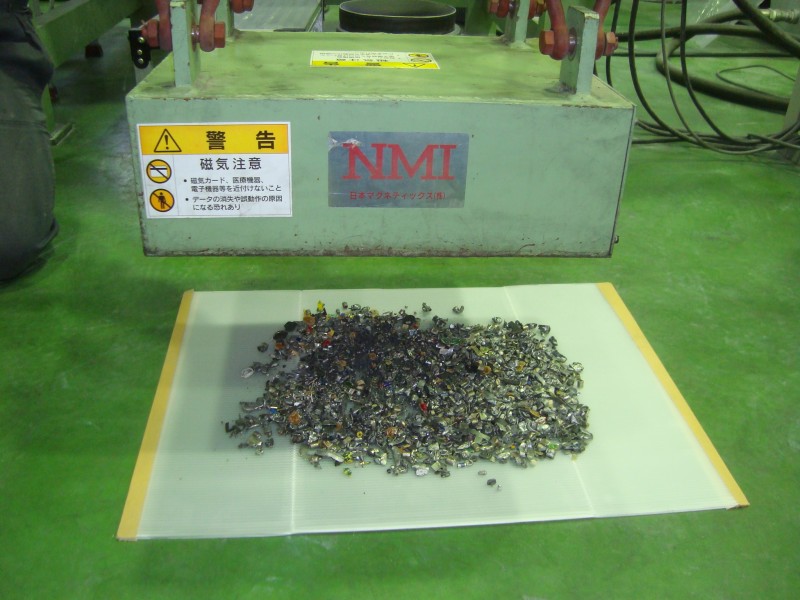

PUF-H is designed to install over the belt conveyor to remove scrap metals.

<Features>

1. No Operating energy is required.
2. Tough durable design is suitable for outdoor use.
3. Available 3 models depending on the magnetic force.

ep10puf-h-figure01

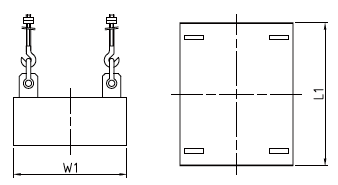

p10puf-h-figure02

<Specifications>

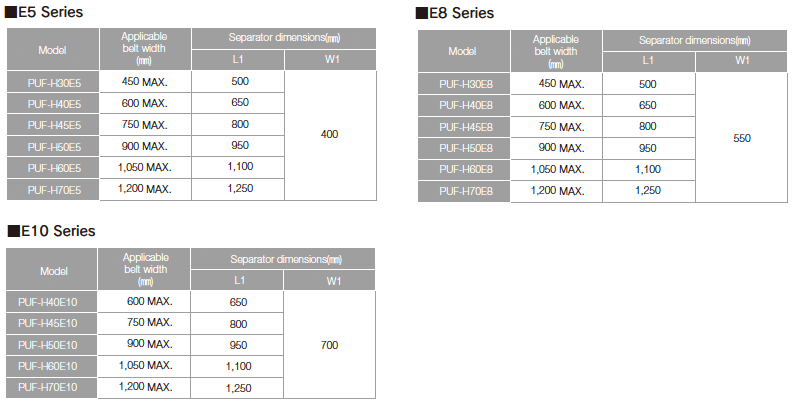

ep10puf-h-size

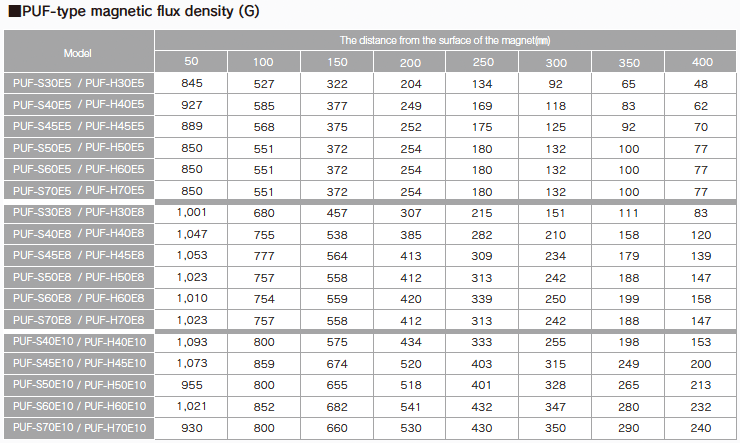

ep10puf-s-list

※Download pdf by clicking on the title.

Catalog download
