Separating one thing from another

Plate Magnet

p07title

p07

Plate Magnet HP-125

Usage・Features・SpecificationsCatalog

<Usage>

Wide range of use over or under the shooter, hopper, duct and conveyer for dry or wet condition.

<Features>

1. Complete Stainless plate shielding for even dry condition use.
2. Available custom design for flange and any type of connections.
3. Available barrier stop design higher attraction force.

<Specifications>

1. Materials in SUS 304 and SUS 316.
2. Model HP with ferrite magnet or RHP with neodymium magnet.
3. Available samarium cobalt magnet for high 300 degree C use.

p07hp200

HP-200×200 High-Power force

ep07list

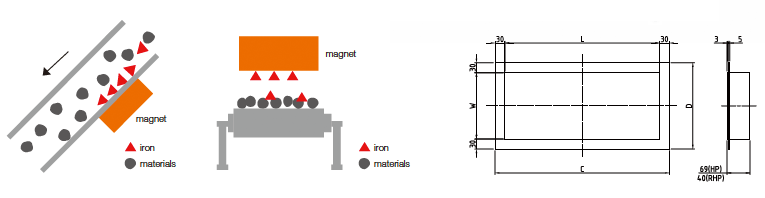

ep07figure

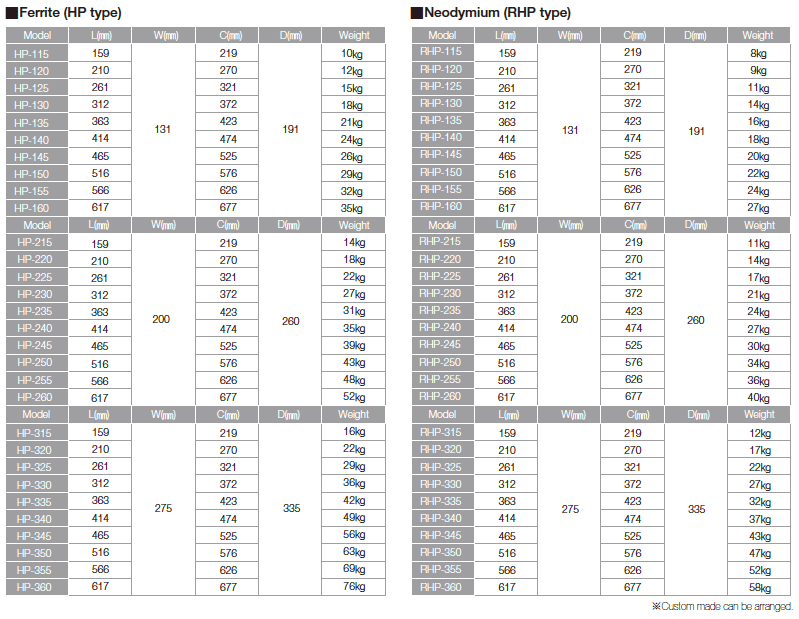

ep07size

※Download pdf by clicking on the title.

Catalog download
