Aluminum / Steel Can Separator Model: ABC

p14abc

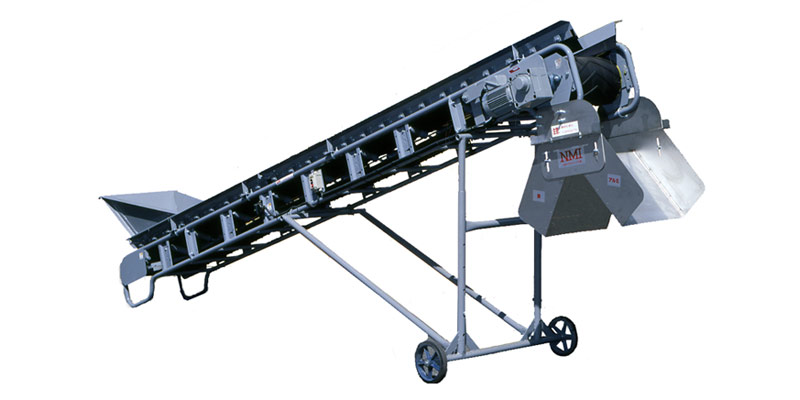

Aluminum/Steel Can Separator Model: ABC-3550(Rising guide is optional.)

Waste Materials can be turned into Valuable by Recycling

  • Usage・Features・Specifications
  • Catalog

<Usage>

Separation of Aluminum and Steel cans. Iron recovery from rubber, glass, wood waste and other non-ferrous materials.

<Features>

1. Simple operation and Rolls for easy relocation
2. Optional drum separator and overhead electromagnetic separator will increase process volume.
3. Even better combination with eddy current separator.
4. Optional belt conveyor speed adjustment inverter for quick manual separation process.
5. Removable hopper and work station can be optional.

<Specifications>

1. Power Source 200/220V、50/60Hz. Energy saver system.
2. 20 meter long plug in cab tire cable.
3. Sorting shooter and tail hopper included
※Side guide and side safety guide are optional.

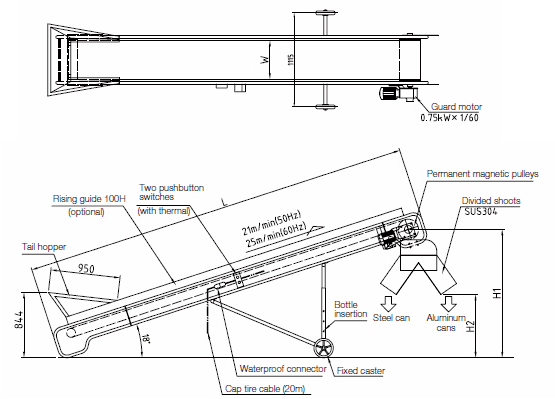

ep14abc-figure

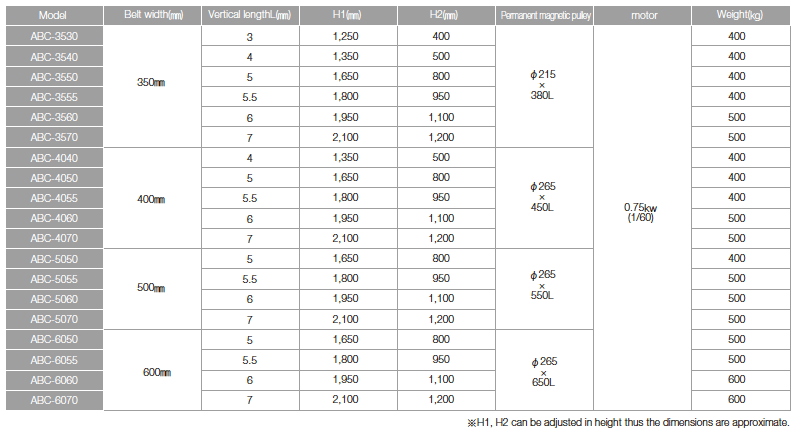

ep14abc-size

Nippon Magnetics, Inc. Channel – YouTube

※Download pdf by clicking on the title.

Catalog download
